Battery Operated Piezometer with DWLR
READY STOCK AVAILABLE FOR DETAILS CONTACT +91-8505000822
Power Supply : Lithium Iron Phosphate Battery
Communication : GSM / GPRS
Service Duration : 1 day
Accuracy : ±0.1% of Full Scale Output (FSO)
Configuration option : By Four key membrane keyboard
Operating Temperature : -10 ˚C to +60 ˚CC
Data Logger & RTC : Any Conductive Liquid
Guarantee : Built in with 365 days X 1 readings per day, Time & Date stamped storage replacement guarantee(except physical damage and theft)
We are leading manufacturer and supplier, of electromagnetic flow meters as per CGWA guidelines. Offering the best services and maintenance at affordable prices.
**Specifications and pricing may vary based on your specific needs and requirements.
| Model | VIFLOW-DWLR-B |
| Country of Origin | India |
| Measuring Range | 0 – [200] m (Customizable as per requirement) |
| Ingress Protection | IP67 / IP68 |
| Resolution | 0.1 mm |
| Sensor Type | Piezoelectric |
| Material | Stainless Steel (SS316) |
| Output Signal | RS-485 / Analog 4-20 mA |
| Data Logger | Integrated Digital Water Level Recorder (DWLR) with Real-Time Clock |
| Memory Capacity | Up to 2 GB (Expandable) |
| Cable Length | As per client requirement |
| Installation Method | Borehole / Open Well / Tank Application |
| Display | LCD for Real-Time Data Visualization |
| Software | Cloud-Based Data Logging & Analysis |
| Certification | ISO 9001:2015, CE Certified |
| Applications | Groundwater Monitoring, Reservoirs, Open Wells, Rainwater Harvesting Structures, etc. |
| Optional Features | Power Operated if Needed |
Battery operated DWLR

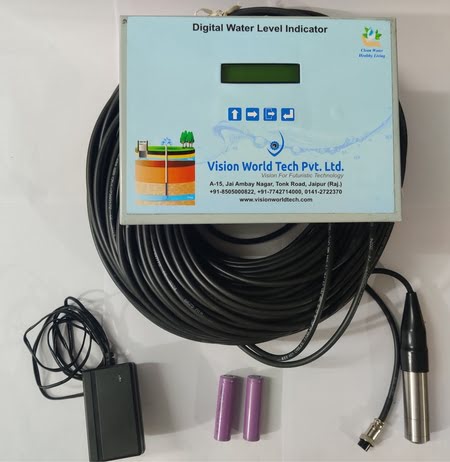

VIFLOW-DWLR-B is a Piezometer with DWLR. It is permanently battery powered instrument suitable for monitoring borewell’s WATER LEVEL below ground level.
The VIFLOW-DWLR-B sends Water Table information to customer’s cloud ones in every 24 hours. Also, it has a built-in data logger for storing one Years Depth data at one time at 24-hour interval per day.
VIFLOW-DWLR-B is battery operated with up to three years battery life.
Features-
- Battery-powered with a lifespan of up to 3 years
- Indicates water depth below ground level (B)
- Mobile-compatible for data download
- Weatherproof plastic housing
- Optional GPRS connectivity with cloud service integration
- Specialized vented signal cable with PU insulation and abrasion resistance
- Built-in data logger capable of storing up to 5 years of data
- On-demand backlit display with a four-key keyboard interface for manual configuration
